5.0 Liter Jaguar Land Rover Supercharger Rebuild Kit

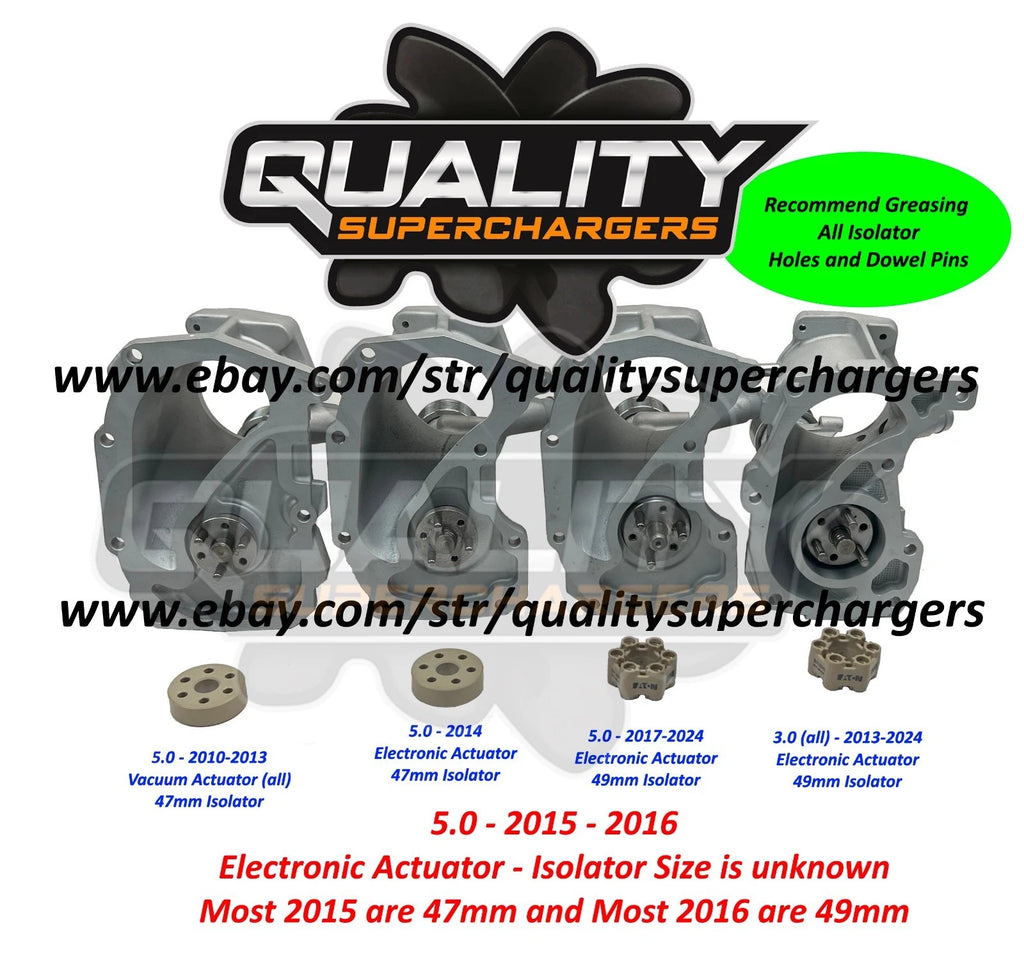

2010-2013 All with the Vacuum Actuator - 47mm

2014 All with Electronic Actuator

2015-2016  verify its 47mm or 49mm by taking supercharger apart

GENUINE EATON PARTS

Eaton is the manufacturer of the Supercharger

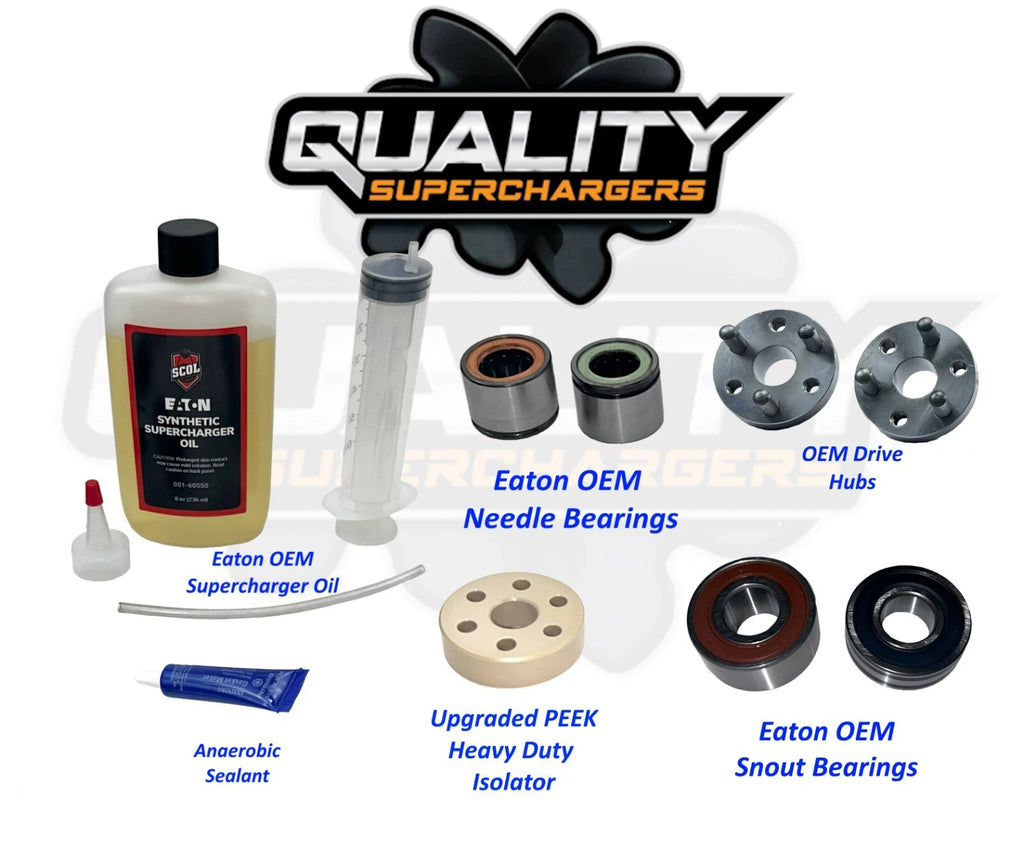

1. EATON Supercharger Snout Bearings (qty 2)
2. EATON Supercharger Inlet Needle Bearings (qty 2)

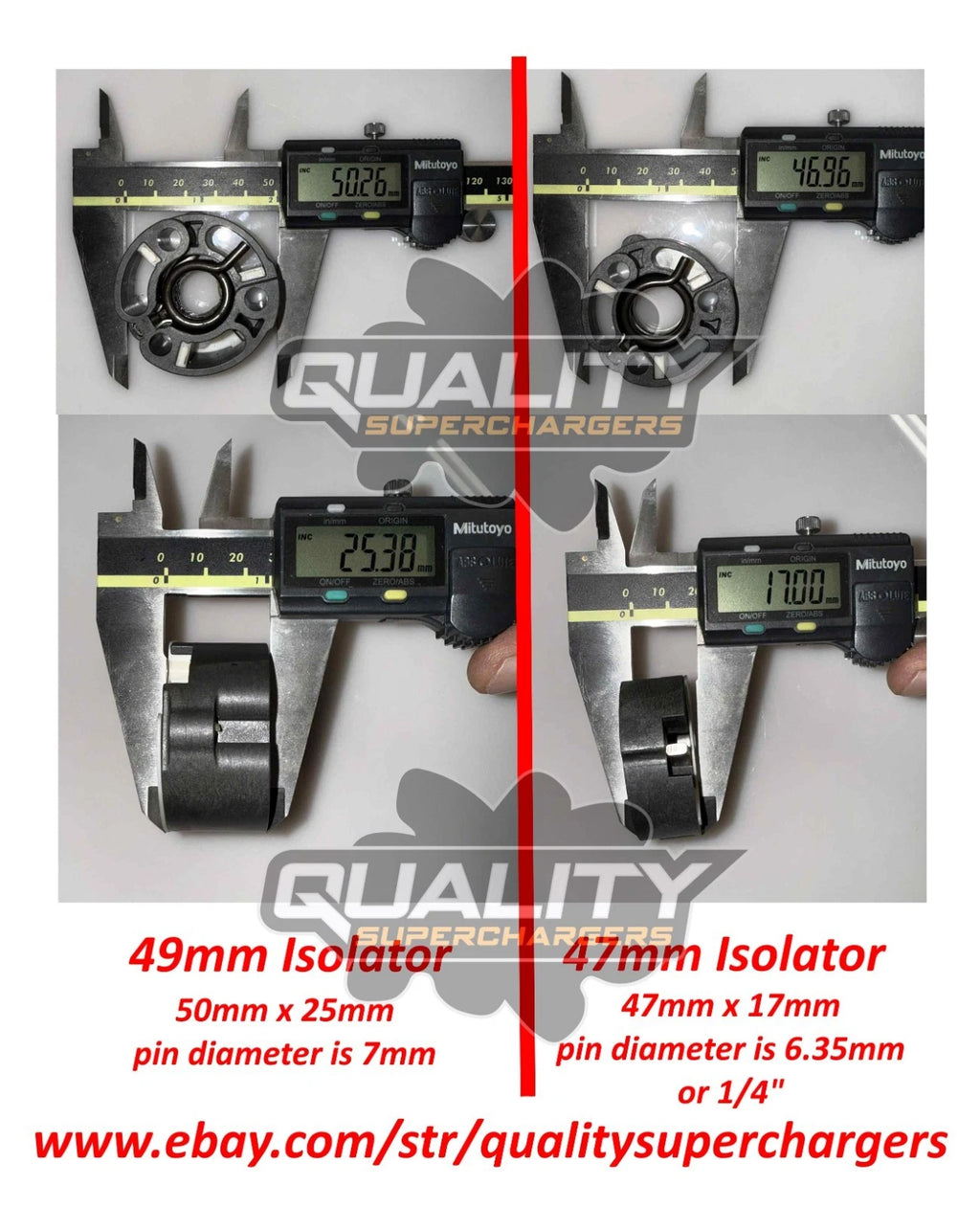

3. Aftermarket PEEK 47mm Aftermarket Replacement Isolator - Best Isolator Available
4. Eaton Supercharger Oil 8 oz (5.1 oz required)

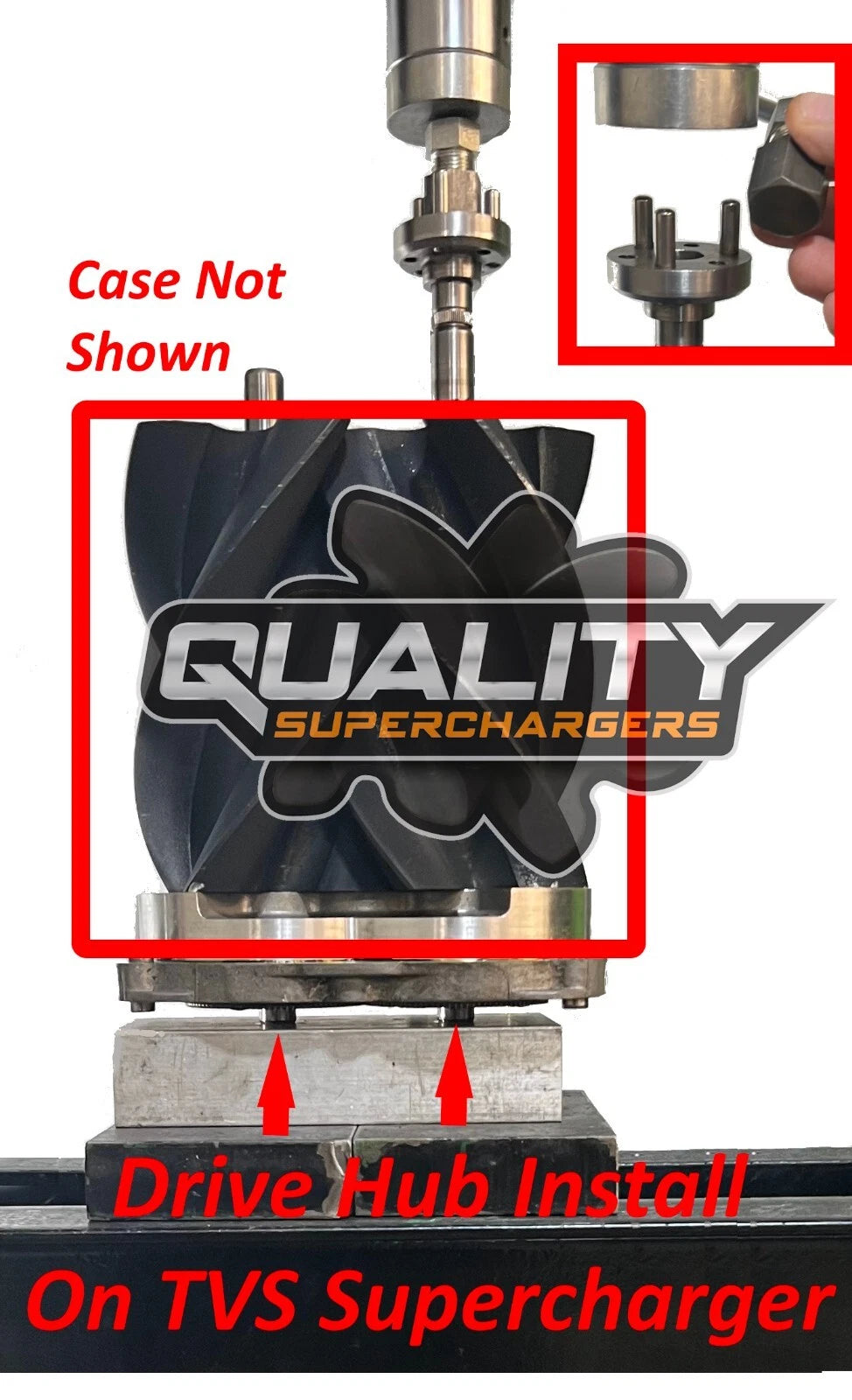

5. Eaton OEM Drive Hubs
6. Eaton OEM Drain Plug
7. Syringe and tube to assist removing oil & refilling
8. Anaerobic sealer to seal the rear rotor pack cover
9. You need RTV to seal the snout to the supercharger! (not included)

Does not fit 3.0 liter engines

Installation Notes:

The snout is sealed to the supercharger with RTV (silicone), scrape off the old and apply some new sparingly. There is one bolt in the snout inlet on some superchargers, see 2nd picture. The TB gasket is reusable but a new one is C2Z28265. I recommend a bolt torque of 19 ft-lb for the snout bolts.
