$169.99
5.0 Liter Jaguar / Land Rover Supercharger
GENUINE EATON PARTS
Eaton is the manufacturer of the Supercharger
2010-2013 All with the Vacuum Actuator - 47mm
2014 All with Electronic Actuator
2015-2016 verify its 47mm or 49mm by taking supercharger apart

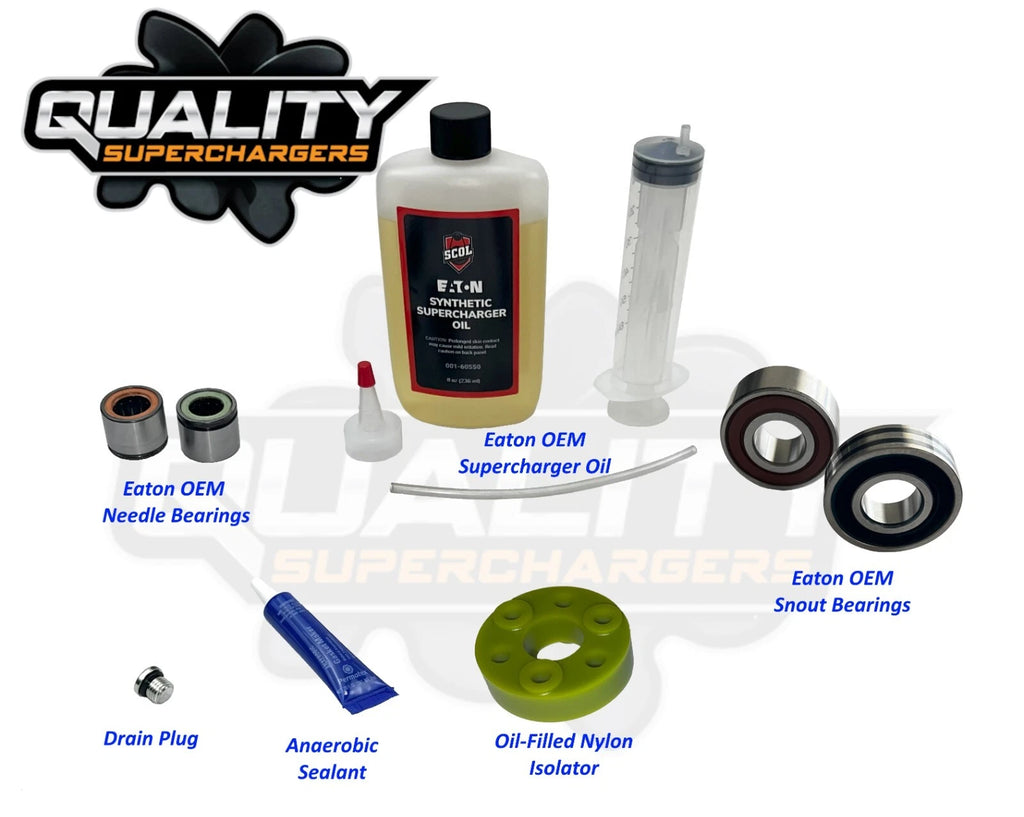

EATON Supercharger Snout Bearings (qty 2)
EATON Supercharger Inlet Needle Bearings (qty 2)
47mm Aftermarket Oil-Filled Nylon Isolator - made in USA
8 oz Eaton OEM Synthetic Supercharger Oil - (4.5 oz for 3.0 liter 5.1 oz for 5.0 liter Required)
Syringe and tub to assist removing oil & refilling
Anaerobic sealer to seal the rear rotor pack cover
Drain Plug
You need RTV to seal the snout to the supercharger! (not included)
Does not fit 3.0 liter engines
Installation Notes:
The snout is sealed to the supercharger with RTV (silicone), scrap off the old and apply some new sparingly. There is one bolt in the snout inlet on some superchargers, see 2nd picture. The TB gasket is reusable but a new one is C2Z28265. I recommend a bolt torque of 19 ft-lb for the snout bolts.
You need RTV to seal the snout to the supercharger! (not included)
Supercharger Tear Down
youtu.be/BF9o6L_qd9E
Needle Bearing Install
youtu.be/122i15j3OK8
Tools used to remove Drive Hub & Needle Bearings
www.ebay.com/itm/115383943287
Drive Hub Puller
www.ebay.com/itm/113825453061
