$75.99
QualitySuperchargers Superchargers

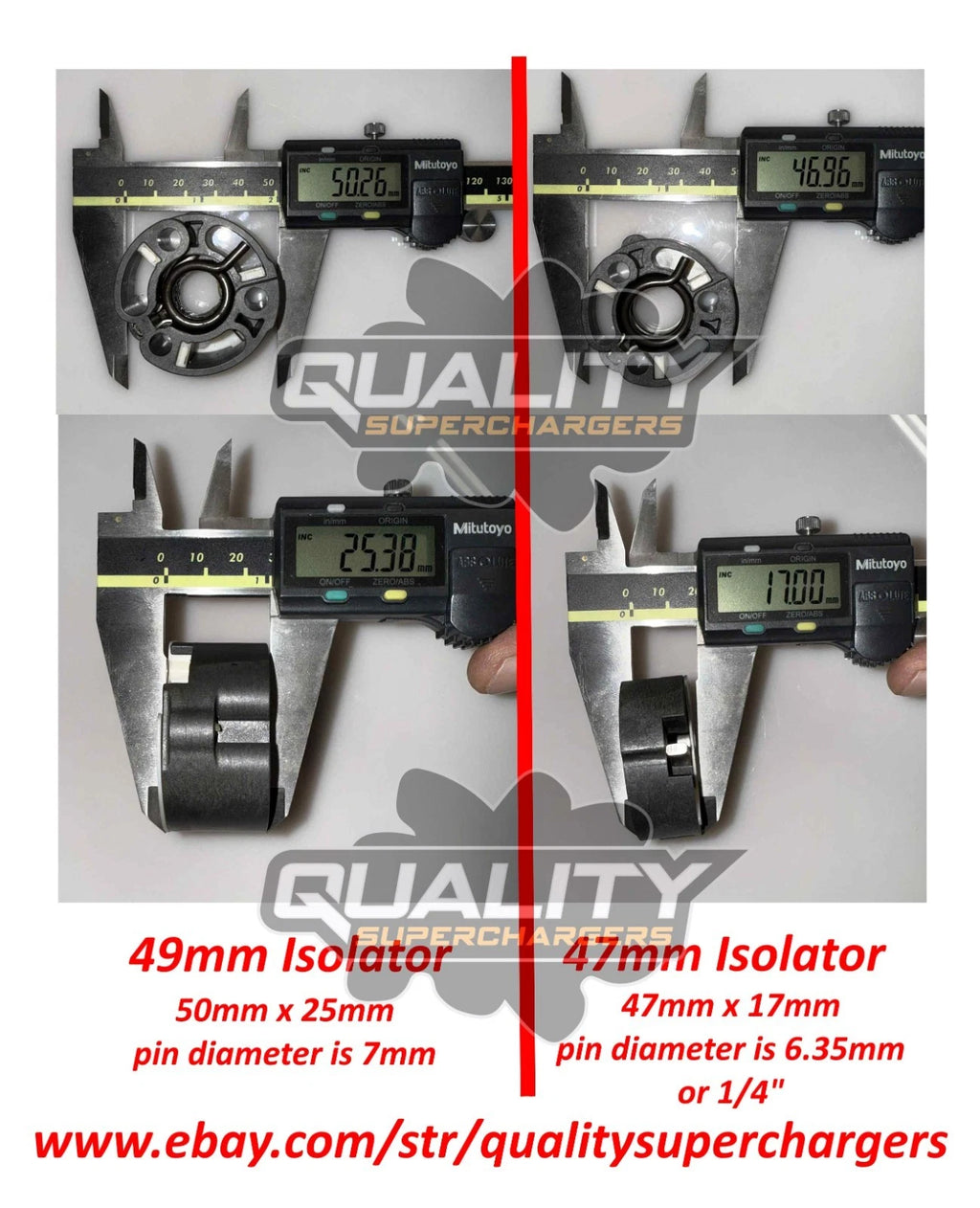

47mm Isolator
Aftermarket PEEK Isolator
Quantity 1
Made in USA
Fits all 2010 - 2014 5.0 superchargers
Direct replacement for the spring loaded noisy isolator in your Land Rover Jaguar.
These solid isolators are made from PEEK engineered plastic resin material that has a melting point of around 650 degrees F and a maximum continuous operating temperature of around 450-500 degrees F. These solid isolator are direct replacements for the original spring isolators.

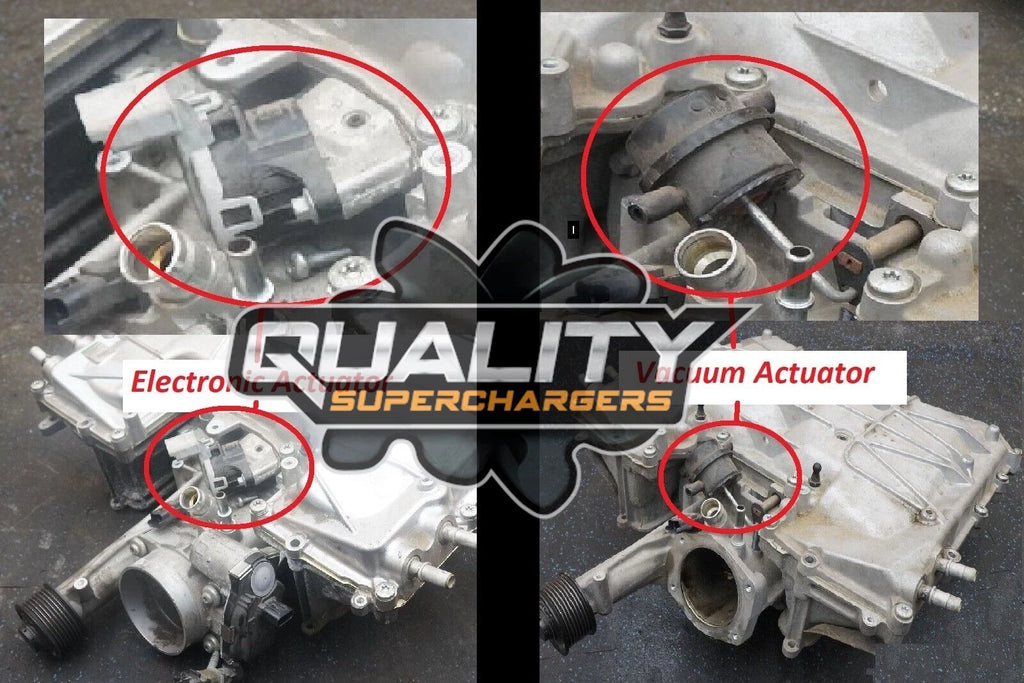

The snout is sealed to the supercharger with RTV (silicone), scrap off the old and apply some new sparingly. There is one bolt in the snout inlet on some superchargers, see 2nd picture. The TB gasket is reusable but a new one is C2Z28265. I recommend a bolt torque of 18 ft-lb for the snout bolts
